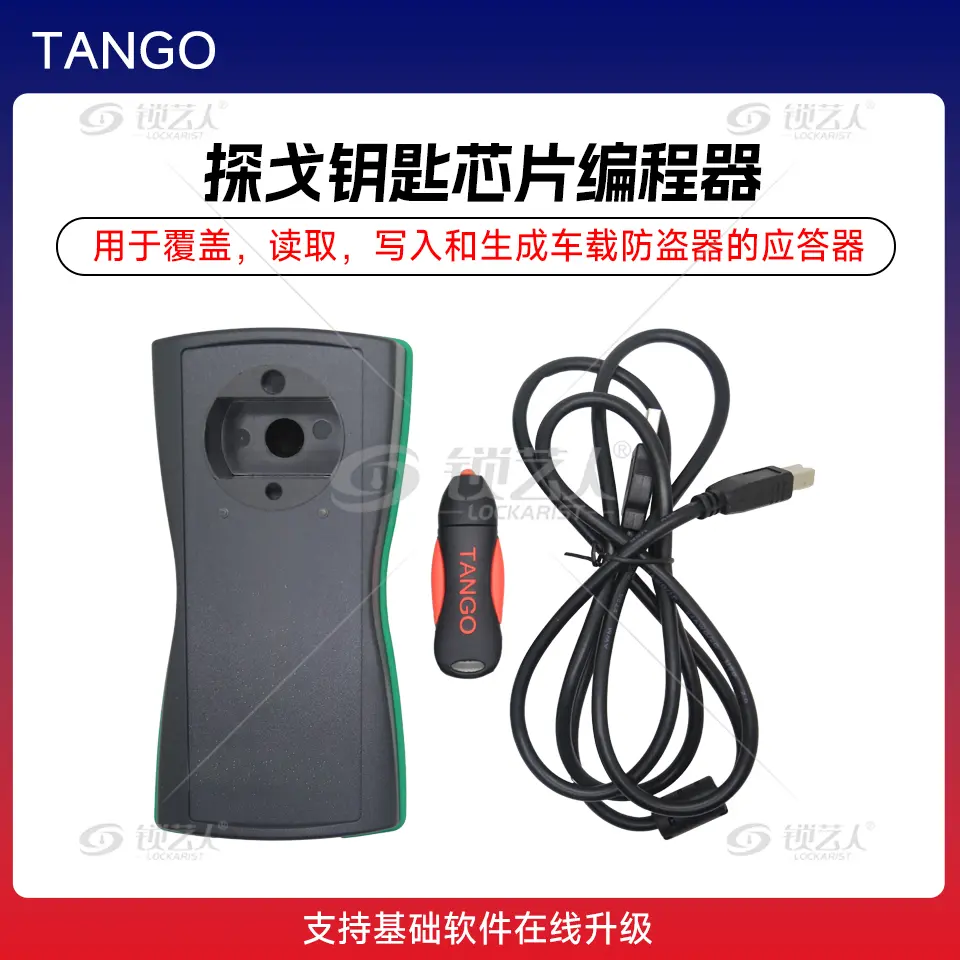

原装探戈Tango Key Programmer Basic钥匙芯片编程器 探戈编程器

新款Tango编程器是一种新一代的应答器编程器，用于覆盖，读取，写入和生成最新的车载防盗器技术中使用的应答器，支持基础软件在线升级。

选择探戈编程器的三大理由:

1. 新款首发
2. 免费在线升级
3. 最新版本: 1.100.1

注意:
1. After buy it, you will need to connect to the official website and update within 28 days, or it will get locked购买之后，需要联系官网并且升级在28天内，或者设备将被锁定。
2.  After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system!使用TANGO Programmer生成新的芯片后，您不需要任何额外的诊断设备将生成的芯片信息编程到汽车上！ 它将直接启动汽车，即使在新的FIAT CODE 2系统，也用于PSA集团的车辆！ 前提是必须将新文件写回防盗系统！

探戈软件添加（在线更新）

Key maker Toyota Yaris 2004 (93C56,4C)*
Key maker Kia Soul 2008- (TC1762,HITAG)
Key maker Isuzu KB250 2004- (93C66,4D)
Key maker Mitsubishi Fuso Canter 2009- (93C66,4D)
Key maker Fiat Ducato 2012- (95640,HITAG)*
Key maker Fiat Burstner Viseo 2011- (95640,HITAG)*
Key maker Kawasaki Denso ECU 21175-0811 (93C86,ID4D)
Key maker Peugeot Boxer 2012- (95640,HITAG)*
Key maker Peugeot Manager 2013 (95160,HITAG)*
Key maker Renault Latitude 2010- (9S12, HITAG)*
Key maker Renault Safrane 2010- (9S12, HITAG)*
Key maker Renault Samsung SM5 2010- (9S12, HITAG)*
Key maker VW New Betle (9S12, ID48EMU)
Dump maker BCM2 (95320,NEC)*
Image generator Great Wall ID40
Format Megamos48
Fixed bug EDC17 Dump editor

Tango Software V1.96.11, Tango Software Added:

Key maker Chevrolet Cruze 2008- (24C16,HITAG)

Key maker Chevrolet Lacetti 2005- (ST7,ID4D)

Key maker Renault Mascott 2002- (93C66,HITAG)

Key maker Renault Clio II 2003- (93C66,HITAG)

Key maker Hyundai Accent 2004- (93C56,ID4D)

Key maker Hyundai H1 2001- (93C56,ID4D)

Key maker Hyundai H200 2001- (93C56,ID4D)

Key maker Hyundai Santa Fe 2006- (93C56,ID4D)

Key maker Hyundai Sonata 2003- (93C56,ID4D)

Key maker Hyundai Starex 2002- (93C56,ID4D)

Key maker Hyundai Terracan 2001- (93C56,ID4D)

Key maker Hyundai Trajet 2004- (93C56,ID4D)

Key maker Kia Carnival 2002- (93C56,ID4D)

Key maker Kia Sorento 2003- (93C56,ID4D)

Key maker Volvo V40 2004- (9S12,ID48)

Key maker Volvo V50 2004- (9S12,ID48)

New pictures in help file (total 315MB)



Tango Software V1.79:



Key maker Honda Stream -2006 (93C46,ID48)

Key maker Honda Fit 2007- (93C66,HITAG)

Key maker Honda bike ECU 38770-KTW-901 (93C66,HITAG)*

Key maker Honda bike ECU 38770-MCZ-003 (93C56,HITAG)*

Key maker Honda bike ECU 38770-MFN-D01 (93C56,HITAG)*

Key maker Honda bike ECU 38770-MEE-702 (93C56,HITAG)*

Key maker UAZ Hunter (TC1762,HITAG)

Key maker Suzuki SX4 2012- (TC1762,HITAG)

Key maker Mazda B3000 2001- (95040,ID4D)

Key maker Ford Focus 2000 (77012,ID4D)

Key maker Ford Ka 2007 (93C86,ID4C)

Key maker Chrysler Voyager Limited 2008- (93C86,HITAG)

Calculator Techstream 96 digits*

New pictures in help file (total 304MB)

List of Supported Transponders支持的发送器（芯片）列表:

Philips Transponders:
PCF7930-31 writing, reading
PCF7935 writing, reading, shadow memory, crypto calculator
PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings
PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7943 transponder, remote, Manchester & Biphase encodings
PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7946 transponder, remote, Manchester & Biphase encodings
PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7961 transponder, remote, Manchester & Biphase encodings
Auto switching between PCF7936-PCF7961 windows if invalid type detected.
Autodetect manchester / biphase

Temic Transponders:
Temic 11 reading , writing to T5
Temic 12 reading , writing to T5

Megamos Transponders:
Megamos (13) reading , writing to T5 , emulating on PCF7930-35
Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation
Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey

Texas Transponders:
Tiris (4C) reading
Tiris (4D) DST crypto reading, writing, crypto calculator
Tiris (4E) DST crypto reading, writing, crypto calculator
Tiris (8C) reading

Atmel:
TK5551M (T5 replacement)
SAAB reading , writing to T5
The product is in working out stages, therefore the list of the supported transponders will be developed later.

Key Maker Usage.
Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.
1. Open an immobilizer dump file.
2. Choose number of the key you want create.
3. Place a transponder into the coil and click the WRITE button.
4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.



First of all, take a look at this picture.  The "Loaded File" window displays the immobilizer file name. Ensure that a valid dump is stored. The "Maker" window displays selected maker name. Ensure the right key maker selected.
The "info" windows display an important information:
1. Original transponder---Informs you about type of the original transponder
2. Allowed transponder---Informs you what type of transponders is suitable for the key maker
3. Data location---The immobilizer memory may be stored in various chips, the description informs you about from where you have to read a dump. Some immobilizers can have various chipsets. In this case the field displays several possible chips. Find one of them inside of the immobilizer and read it.
4. Data size---Each chip has certain memory size, the key maker accepts files with the described size.
5. Data format---This field appears in case of 93CXX eeprom seria.
There are two standards of data layout:
Intel format and Motorola format or Little Endian and Big Endian respectively.
The data layout depends on a chip-programmer that is used for eeprom reading.This field informs you what kind of format is suitable for the key maker.Usually you can see that both formats are suitable. It means that the program can understand any data layout.

Create a Key Step by Step
Firstly, run the key maker interface according to the vehicle and read information in the "Info" window. Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).
Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.
The program will analyse the dump.
If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.
Take a look at the "Info" window, the Allowed transponder field.
Ensure you use a transponder exactly the indicated type.
Place the transponder into the coil.
Choose the key position you want create in the "Keys" window.
Click the "WRITE" button.
This starts the writing process and transponder will be stored with the appropriate data.
At this point you may be asked to save a new immobilizer dump.
The program displays a standard File Save dialog where you have to save the data.
After this you will be informed about the new data saved and must be written into the immobiliser.

Write the new dump into the immobilizer. Now it is ready to operate with the created transponder.If you are not asked to save a new file, it means that immobilizer is ready to operate with the created transponder without file replacing.

将新的转储写入防盗锁。 现在可以使用创建的应答器进行操作。如果没有要求保存新文件，则表示防盗器已准备好使用创建的应答器进行操作，无需替换文件。

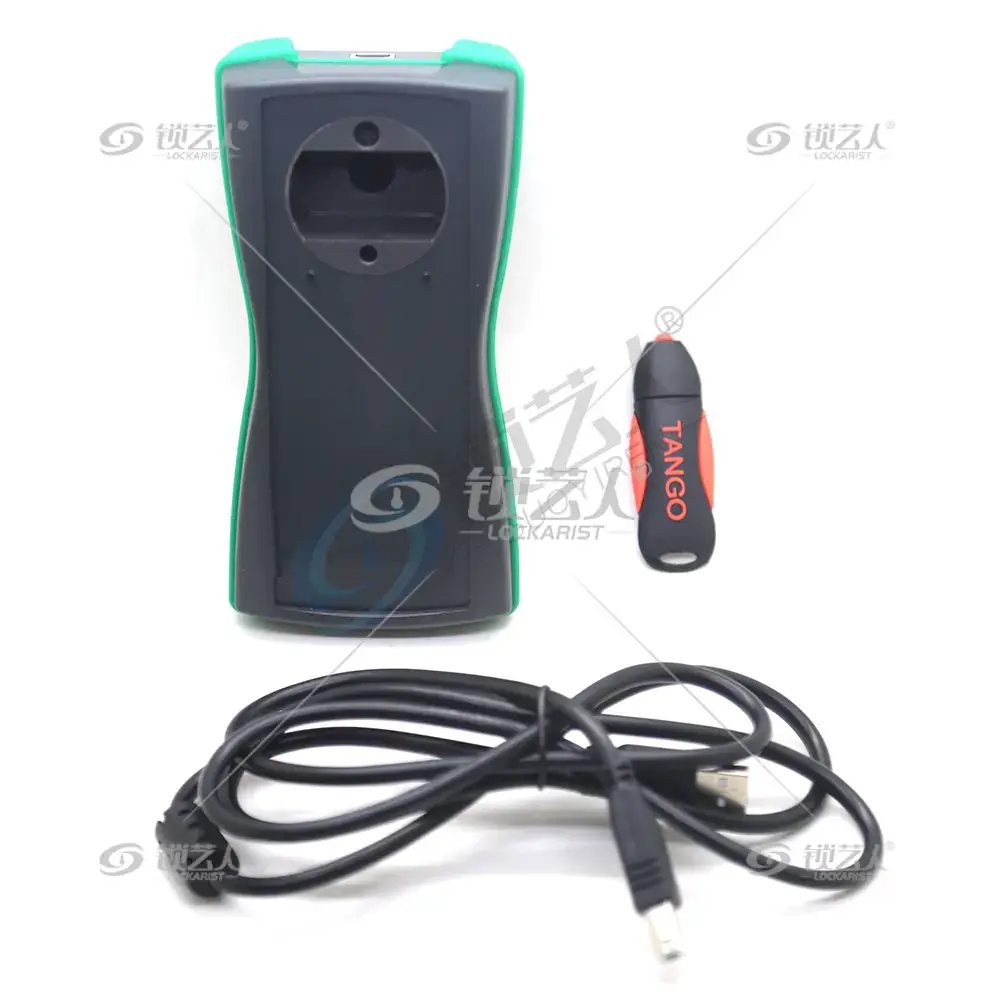

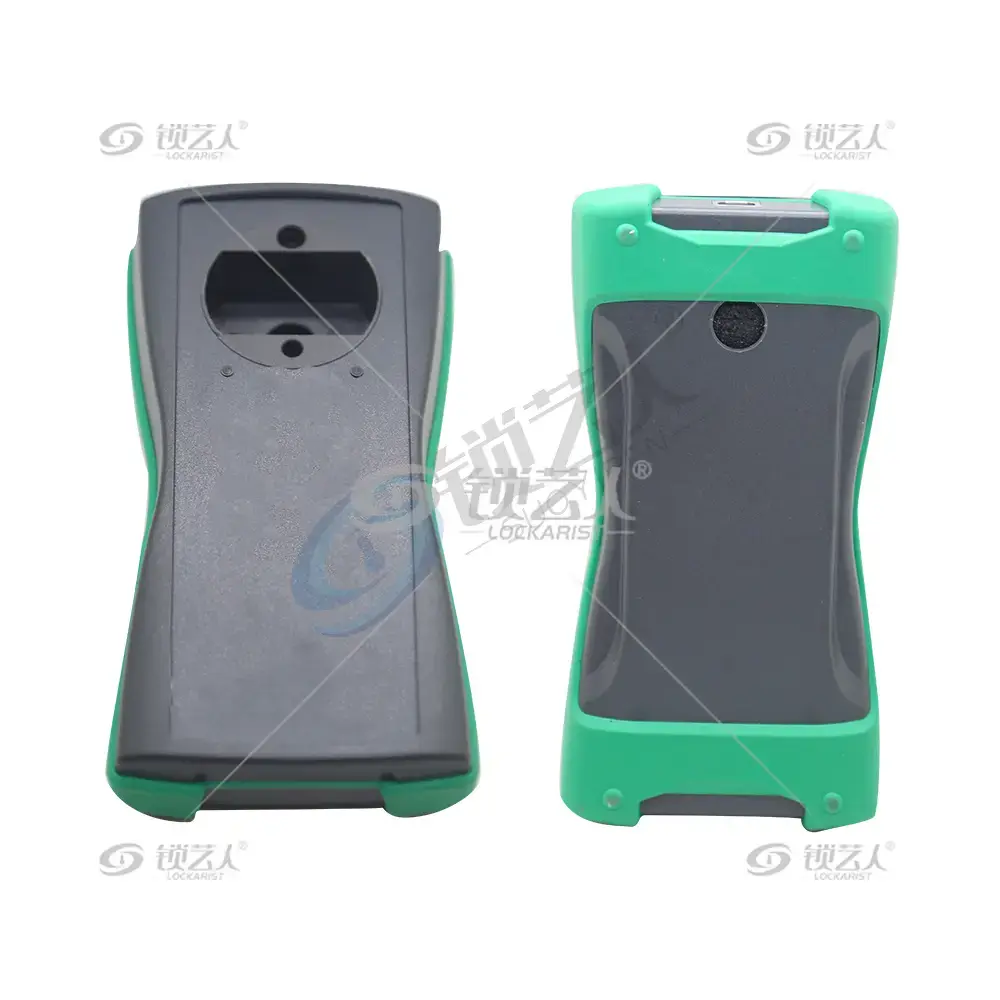

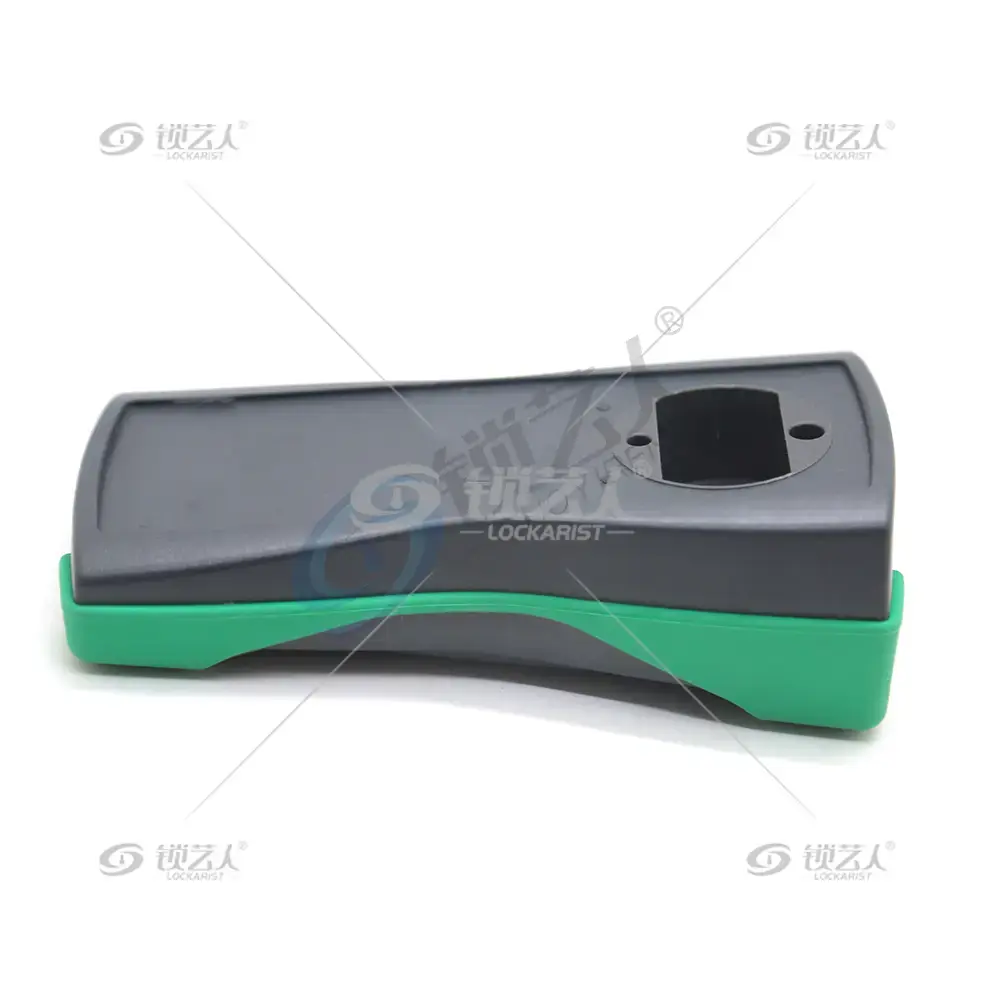

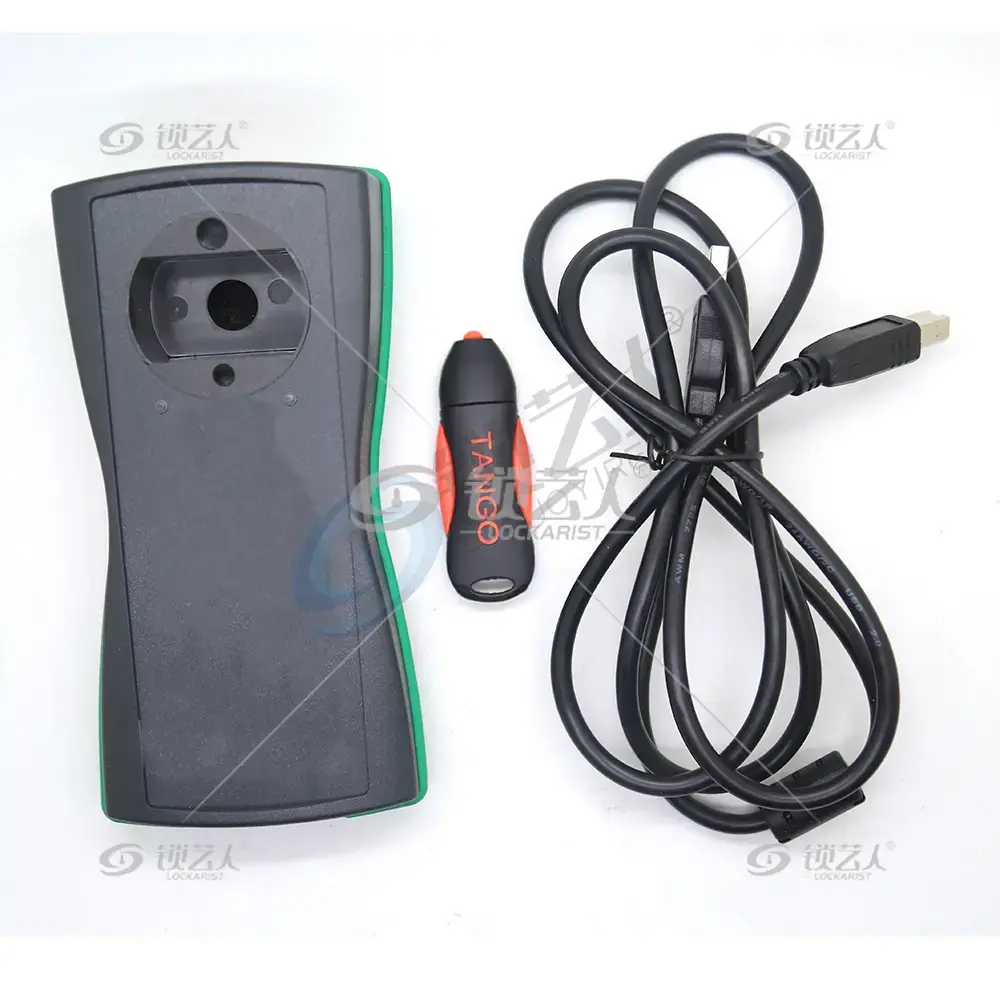

Finish

1. ABS plastic enclosure: ingress protection  IP65/DIN EN 60529
2. Rubber seal: prevents sliding on a workbench shock-proof function
3. USB connection:  no external power
4. Big hole:  adopted to large keys
5. Three small holes:  adopted to various sizes of transponders

1. ABS塑料外壳：防护等级IP65 / DIN EN 60529

2.橡胶密封：防止工作台上的滑动防震功能

3.USB连接：无外部电源

4.大孔：适用于大钥匙

5.三个小孔：适用于各种尺寸的应答器（芯片）



FAQ:

Q: Hardware not found after install the software and driver, how to solve it?
A: You need to install the software v1.83 first, then v1.84, next v1.85(install the software from older to newer)

Q: Tango key programmer support update for free or not?
A: Update free You need to connect the official website to update once within 28 days, otherwise the machine will be blocked. If you need special function or work it on special car model, you need to pay for it, you can check specific cost online

Q: I reprogram a BMW key, if I can delete the reprogrammed key with Tango?
A: No, it do not support this function

Q: Is there tokens limitation for Tango? Is there any extra cost, such as update cost?
A: There is no tokens limitation for Tango. Software update online for free. But if you need special function, or want to work it on special car model, you need to pay money to open the authorization

Q: Do you have Tango user manual?
A: You can check Tango user manual in the menu after software installation

问：在安装软件和驱动程序后没有找到硬件，如何解决？

A：您需要先安装软件v1.83，然后安装v1.84，下一步v1.85（安装软件从旧到新）



Q：探戈钥匙程序员支持免费更新还是不行？

A：免费更新你需要连接官方网站在28天内更新一次，否则机器会被阻止。如果你需要特殊的功能或工作在特殊的汽车模型，你需要支付它，你可以检查在线具体成本



问：我重新编程一个宝马钥匙，如果我可以删除重新编程的钥匙与探戈？

A：不，不支持此功能



问：Tango有令牌限制吗？是否有任何额外费用，例如更新费用？

A：Tango没有令牌限制。软件更新免费在线。但如果你需要特殊的功能，或想要在特殊的汽车模型上工作，你需要付钱打开授权



问：你有Tango用户手册吗？

A：软件安装后，您可以在菜单中查看Tango用户手册
